Threading Instructions

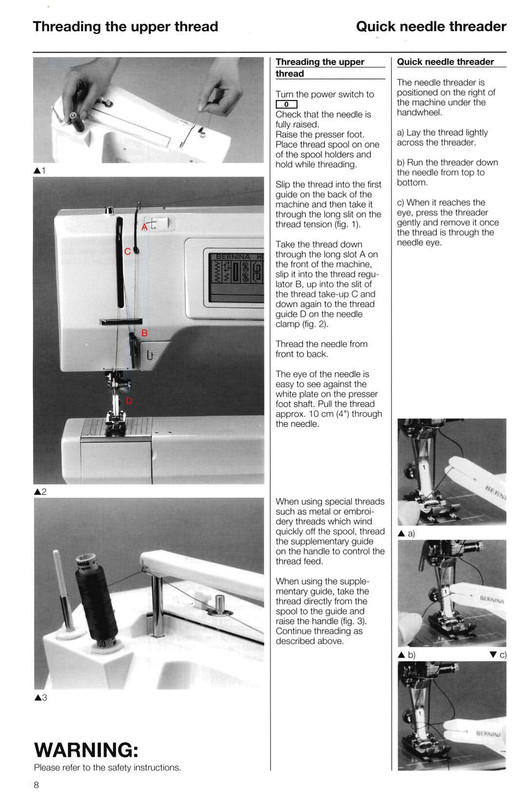

Threading the upper thread:
A) Turn the power switch to 0.
B) Check that the needle is fully raised.
C) Raise the presser foot. Place thread spool on one of the spool holders and hold while threading.
D) Slip the thread into the first guide on the back of the machine and then take it through the long slit on the thread tension (fig. 1).
E) Take the thread down through the long slot A on the front of the machine, slip it into the thread regulator B, up into the slit of the thread take-up C and down
again to the thread guide D on the needle clamp (fig. 2).
F) Thread the needle from front to back.
G) The eye of the needle is easy to see against the white plate on the presser foot shaft. Pull the thread approx. 10 cm (4 “) through the needle.
When using special threads such as metal or embroidery threads which wind quickly off the spool, thread the supplementary guide on the handle to control the thread feed.
When using the supplementary guide, take the thread directly from the spool to the guide and raise the handle (fig. 3). Continue threading as described above.
Bringing up the lower thread
1) Turn the power switch to 1
2) Hold the end of the upper thread and sew a stitch by tapping the foot control once. Pull the upper thread to bring the lower thread up through the stitch plate hole (fig. 1). Take both threads through the slot in the presser foot and to the side of the foot.
Instead of tapping the foot control, the lower thread can be brought up by turning the handwheel forwards until the needle is in its highest position .
