New Home – Janome JA1504 – JA1512 Service Manual

Description

New Home – Janome JA1504 – JA1512 Service Manual.

Please note* – This is an adjuster service manual with parts diagrams.
This is not an instruction or user manual.
Please visit our site for those manuals.

JA series models:
JA1504
JA1506
JA1508
JA1510
JA1512

This is a basic manual that includes:
19 page Adjusters service manual.

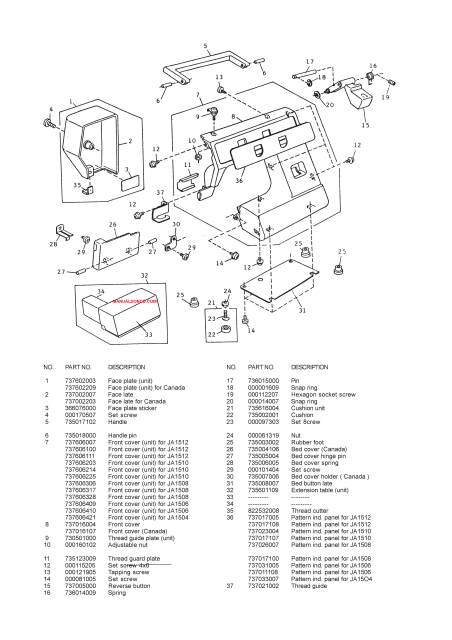

8 page parts manual with parts diagrams and part numbers.

Covers the following:

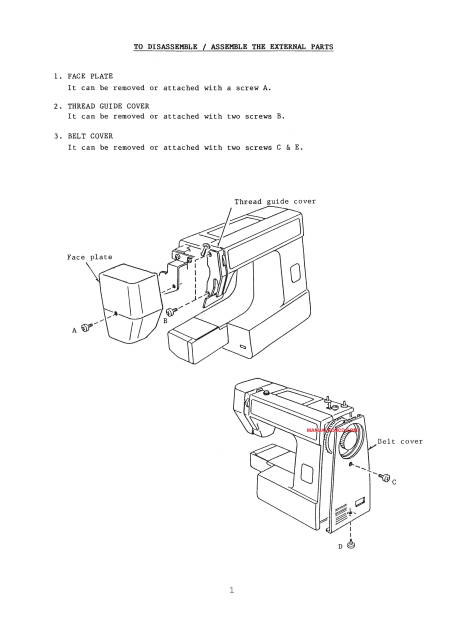

Disassemble and assemble the external parts.
Adjusting the following:
Upper thread tension dial.
Bobbin tension.
Presser bar height.
Needle swing.
Needle drop.
Feed balance on stretch stitch.
Height of feed dog.
Clearance between needle and hook.
Needle bar height.
Adjust the hook timing.
Bartack feed of buttonhole.
Buttonhole feed balance.
Adjust the disengagement clearance of cam follower to adjust the motor belt tension.
Upper and lower shaft bushings.
Connect cords to the motor attachment cap.

PDF download.

New Home – Janome JA1504 – JA1512 Service Manual.

You can find the sewing machine instruction and user manuals here on our shop.

If you have any questions, please ask before ordering.
